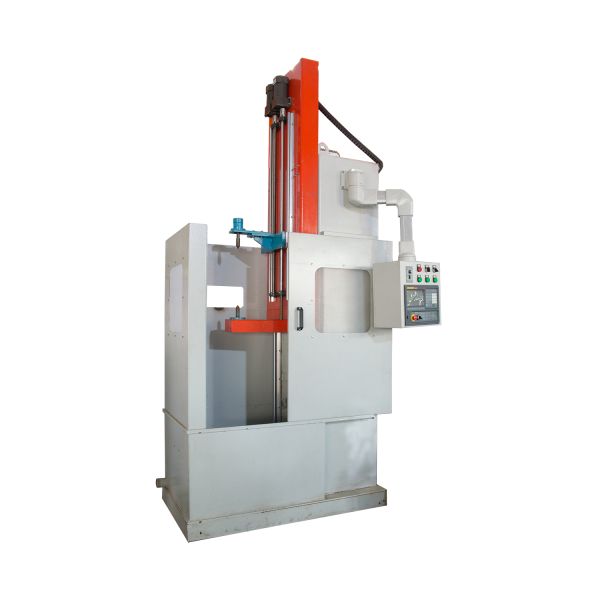

1. Lathe: adopt welded structure with good rust-proof functions.
2. Top adjustment parts: adopt electric adjustment to realize clamping of different length work pieces.
3. Work table system: adopt ball screw and servo motor to drive, light driving, high guide precision and accurate positioning.
4. Main shaft rotation system: adopt variable frequency regulating to realize parts rotation speed continuous adjusted.
5. Electric control part: the machine tool has power-loosing protection function. Safe and reliable.
6. Frame: made by thick steel plates, with window and sliding doors, prevent water splash, easy to load parts and monitor hardening process.
5. Advantage of CNC quenching machine tools:
Quenching is to heat the material above the phase transition temperature, and to keep the microstructure of the material
sufficiently transformed into austenite during a certain period of time. Then, the material is cooled rapidly and the martensite microstructure is obtained. Quenching is mainly to obtain higher hardness and better wear resistance. It is mainly used for carburizing parts such as gear, shaft, motor, roller, knife edge, screw, mould, track and so on.
Induction quenching equipment is our heat treatment systems for surface and through hardening.
At the heart of each quenching machine is Induction high frequency heat generator, which adopts the latest MOSFET power units and unique frequency conversion technology. Induction hardening equipment consists of induction power supply, load line, capacitor, transformer, inductor, and machine tool. The quenching family includes horizontal type, vertical type and special machine, and compensated induction power sources with a wide range of output frequency and power.
